Cu-Alloy Globe Valves - IS 778 Class 1 & 2

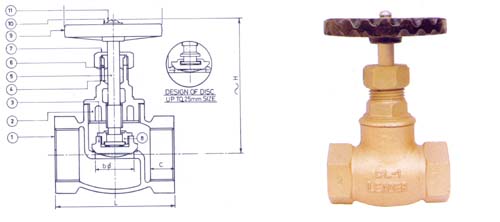

STANDARD | MATERIAL | COMBINATION | ||||||||||||||||||||
P.No. | Qty. | DESCRIPTION |
MATERIAL |
SPECIFICATIONS | ||||||||||||||||||
1 | 1 | BODY |
LEADED TIN BRONZE |
LTB2 OF IS 318 | ||||||||||||||||||
2 | 1 | BONNET |
LEADED TIN BRONZE |
LTB2 IS 318 | ||||||||||||||||||
3 | 1 | DISC |
LEADED TIN BRONZE |
LTB2 OF IS 318 | ||||||||||||||||||
4 | - | GLAND PACKING | HEMP & JUTE / ASBESTOS | IS 5414 liS 4687 | ||||||||||||||||||
5 | 1 | STEM | BRASS ROD | FHTB1 OF IS 6912 | ||||||||||||||||||
6 | 1 | GLAND | LEADED TIN BRONZE / BRASS | LTB2 OF IS 318/ FLB OF IS 6912 | ||||||||||||||||||
7 | 1 | GLAND NUT | LEADED TIN BRONZE / BRASS | LTB2 OF IS 318/ FLB OF IS 6912 | ||||||||||||||||||
8 | 1 | STEM NUT | LEADED TIN BRONZE / BRASS | LTB2 OF IS 318/ FLB OF IS 6912 | ||||||||||||||||||
9 | 1 | HANDWHEEL |
C.I. / STEEL |
FG200 OF IS 210/ ANY GRADE | ||||||||||||||||||
10 | 1 | WASHER | CARBON STEEL | ANY GRADE | ||||||||||||||||||
11 | 1 | SET SCREW | CARBON STEEL | ANY GRADE | ||||||||||||||||||
DIMENSIONAL DATA | ||||||||||||||||||||||
DN | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
65 |
80 | 100 | |||||||||||
NPS | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | |||||||||||
L | 47 | 50 | 60 | 70 | 80 | 95 | 110 | 125 | 160 | 180 | 216 | |||||||||||
b | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
50 |
65 | 80 | 100 | |||||||||||
C | 8.5 | 9 | 12 | 13 | 15 | 16 | 16 | 19.5 | 21 | 23 | 29 | |||||||||||
H | 75 | 75 | 83 | 89 | 98 | 109 | 120 | 128 | 156 | 174 | 206 | |||||||||||
HW | 48 | 48 | 60 | 60 | 70 | 80 | 92 | 103 | 130 | 150 | 165 | |||||||||||
ITEM | CLASS 1 | IS 013B | IS013C | IS 0130 | IS 013F | IS 013G | IS 013H | IS 0131 | IS 013J | IS013K | IS 013L | IS 013N | ||||||||||
CODE | IS 017C | IS 0170 | IS 017F | IS 017G | IS 017H | IS 0171 | IS 017J | IS 017K | IS 017L | IS 017N | ||||||||||||
NOS. | CLASS 2 |
IS 017B |
||||||||||||||||||||
TEST | PRESSURES | |||||||||||||||||||||
NOMINAL PRESSURE ACCORDING | SHELL TEST | SEAT & BACK SEAT | STANDARD NO. | |||||||||||||||||||
TO CLASS DESIGNATION | (HYDROSTATIC) | (HYDROSTATIC) | ||||||||||||||||||||
CLASS 1 | 1.5 MPa (217.5 psig) | 1.0 MPa (145 psig) | IS6157 | |||||||||||||||||||
CLASS 2 | 2.4 MPa (348 psig) | 1.6 MPa (232 psig) |
