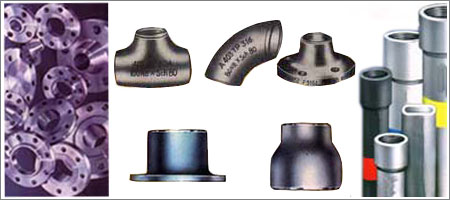

   Pipe Fittings & Flanges


TRINE offers a wide range of Pipe line fittings including elbows, tees, bends, reducers (concentric / eccentric), lap joint stubends, union, coupling, nipple, etc. with butt welding, socket welding or screwed end connection in C.S., S.S., F.C.S., F.S.S. constructions. The standards followed are ASTM A403, A106, A182F, A105, A234

TRINE also manufactures F.C.S. (A105), M.S. (IS:2062), S.S.(A240), F.S.S.(A182F) Flanges (Slipon/Blind/Socket Weld/Weld Neck) as per ANSI B16.5, ASA Class-150, 300, 600, DIN:2527/2576 ND-10, 16, 25, 40, BS-10 Table-D, E, F, H, J, K, IS:1536.



Pipe Fittings & Flanges



They are available in size ranging from 15mm to 600mm. TRINE fittings & flanges can be supplied under third party inspection with all necessary testings such as Chemical, Physical, Micro, Macro, etc. TRINE fittings are widely used in industries like Chemical, Petrochemical, Pharmaceutical, Fertiliser, Nuclear, Power, etc.

TRINE forged fittings are forged by Close Die Method. They are designed & bored from solid drop forgings to enable the walls to be of uniform thickness. Elbow, Tee & other fittings (screwed/socket weld) are forged solid from graded quality steel billets. Coupling, Reducers, Bushings, Caps, Plugs (screwed/socket weld) are machined from solid forged bars. Elbow, Tee, Reducers (B/W) are made from graded quality seamless pipes and are forged under hydraulic process. Each fitting is marked with the required identification by stamping on the coller portion.

The company also supplies prime quality Stainless Steel & Carbon Steel pipes & tubes (ERW/Seamless) conforming to A106, BS:3059, SA179, A333 Gr.6, A312, A213, DIN : 17175, IS: 1239, IS: 3589, API 5L.
